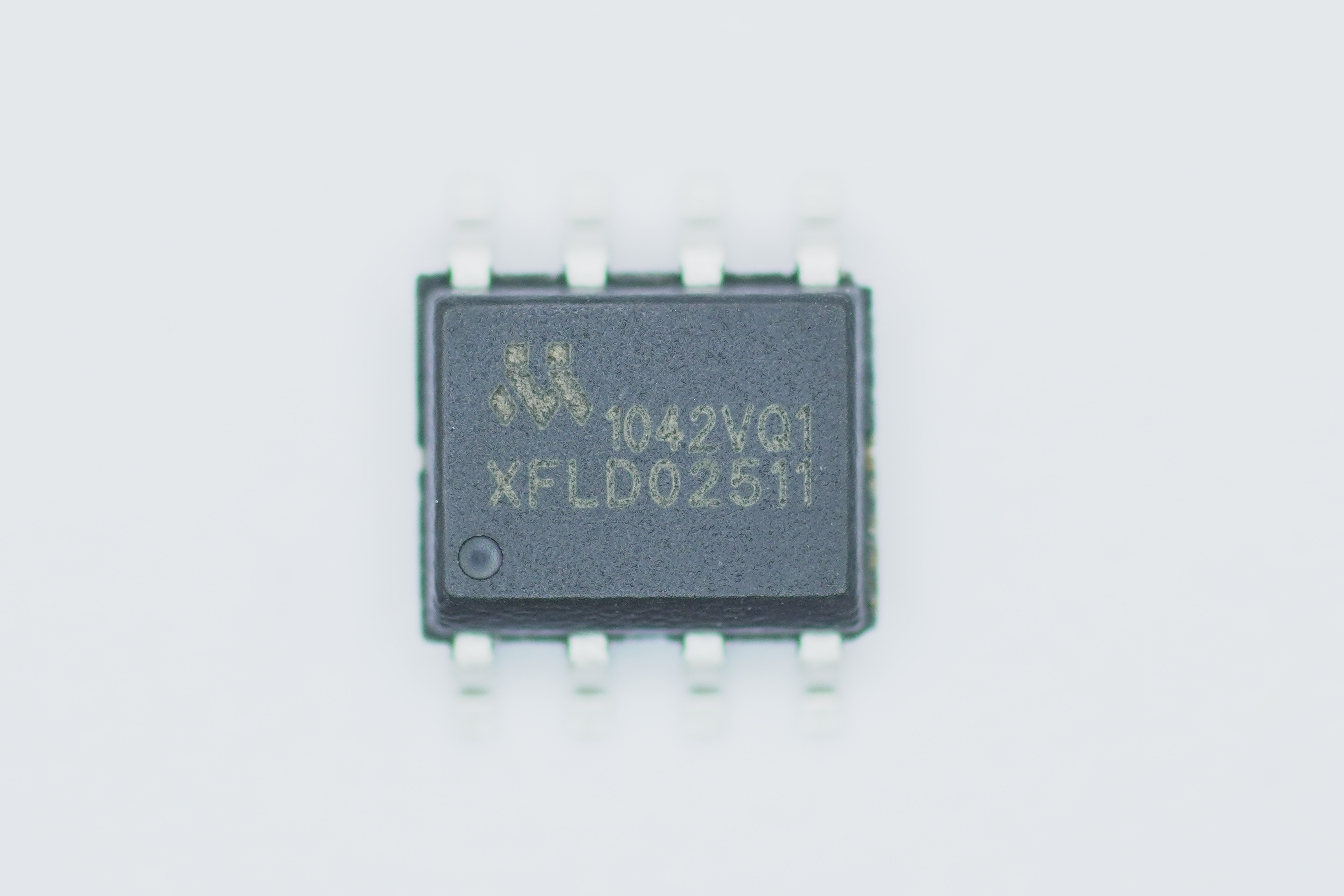

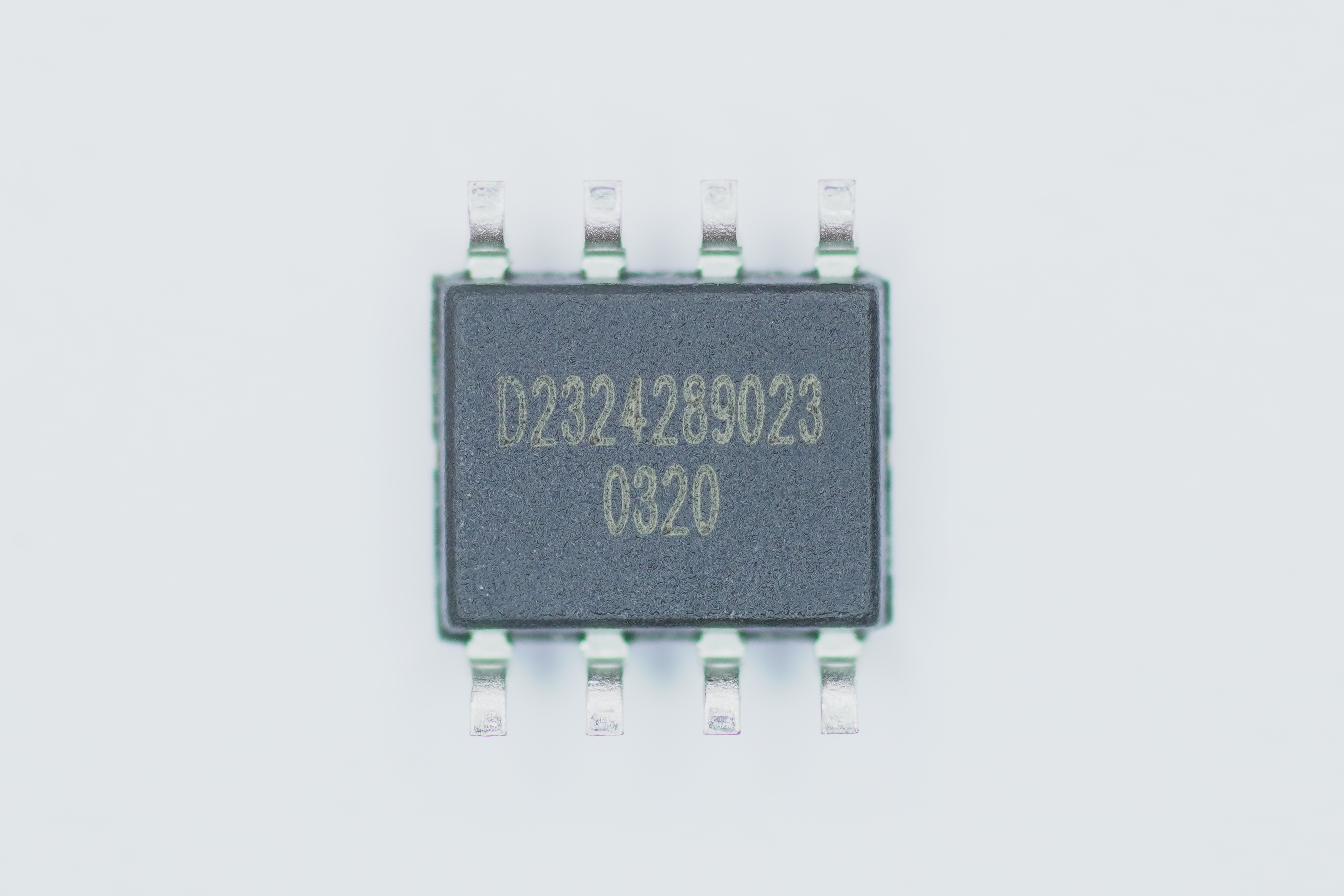

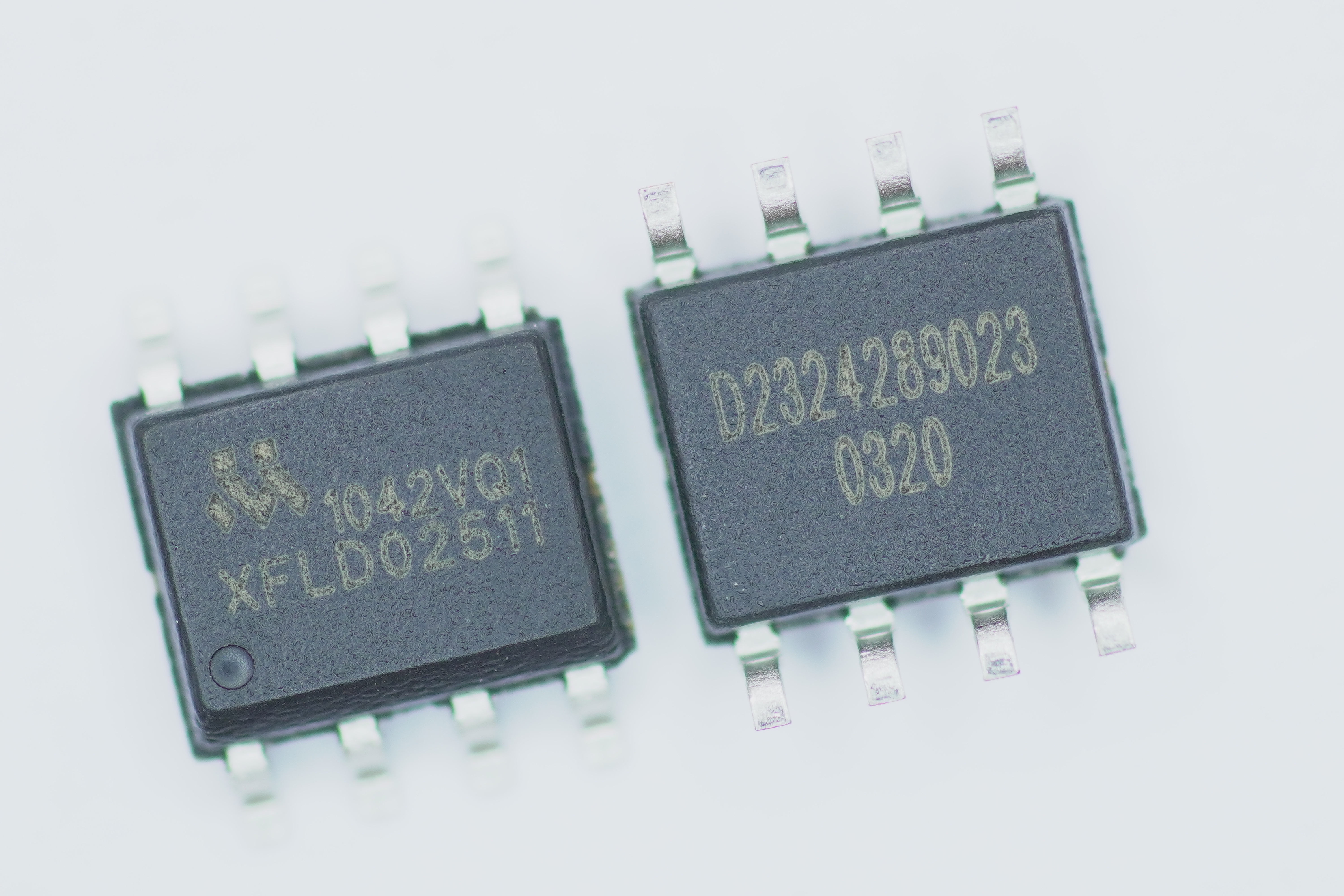

MCAN1042-Q1
±70V Fault Protected CAN Transceiver with CAN FD
AEC-Q100 Grade 1
Meets the ISO 11898-2:2016 and ISO 11898- 5:2007 physical layer standards •
Support classic CAN and 5 Mbps CAN FD
EMC performance: supports SAE J2962-2 and IEC62228-3 (up to 500 kbps) without common mode choke
I/O Voltage range supports 3.3 V and 5 V MCUs
Ideal passive behavior when unpowered
Protection features
– Bus Fault protection: ±70 V
– Under-voltage protection on VCC and VIO (V variants only) supply terminals
– Driver dominant time out (TXD DTO)
– Data rates down to 10 kbps
Thermal shutdown protection (TSD)
Receiver common mode input voltage: ±30 V
Typical loop delay: 110 ns
Junction temperatures from –40°C to 150°C
Automotive and Transportation
– Body Electronics / Lighting
– ADAS / Safety
– Infotainment applications
– Power Train / Chassis
– Motor Control
All devices support highly loaded CAN networks
SOP-8
DFN3*3
